Busbar Trunking System Designed and Tested in Singapore

Tai Sin LT Line I Busbar Trunking System (a.k.a Busway, Bus Duct) is a reliable and efficient electrical distribution system with sandwich construction and superior performance. It is a safe and robust power distribution system with high electrical efficiency, low voltage drop, high mechanical strength.

Our system offers a full line of busbar trunking system to meet most requirements. Offering 3P3W, 3P4W, 3P5W, supply and distribution, with rated current from 250A to 4000A (for aluminum conductor) & 400A to 5000A (for copper conductor), rated operation and insulation voltage up to 1000V, IP degree up to IP66 and the frequency 50~60Hz.

View Catalogue

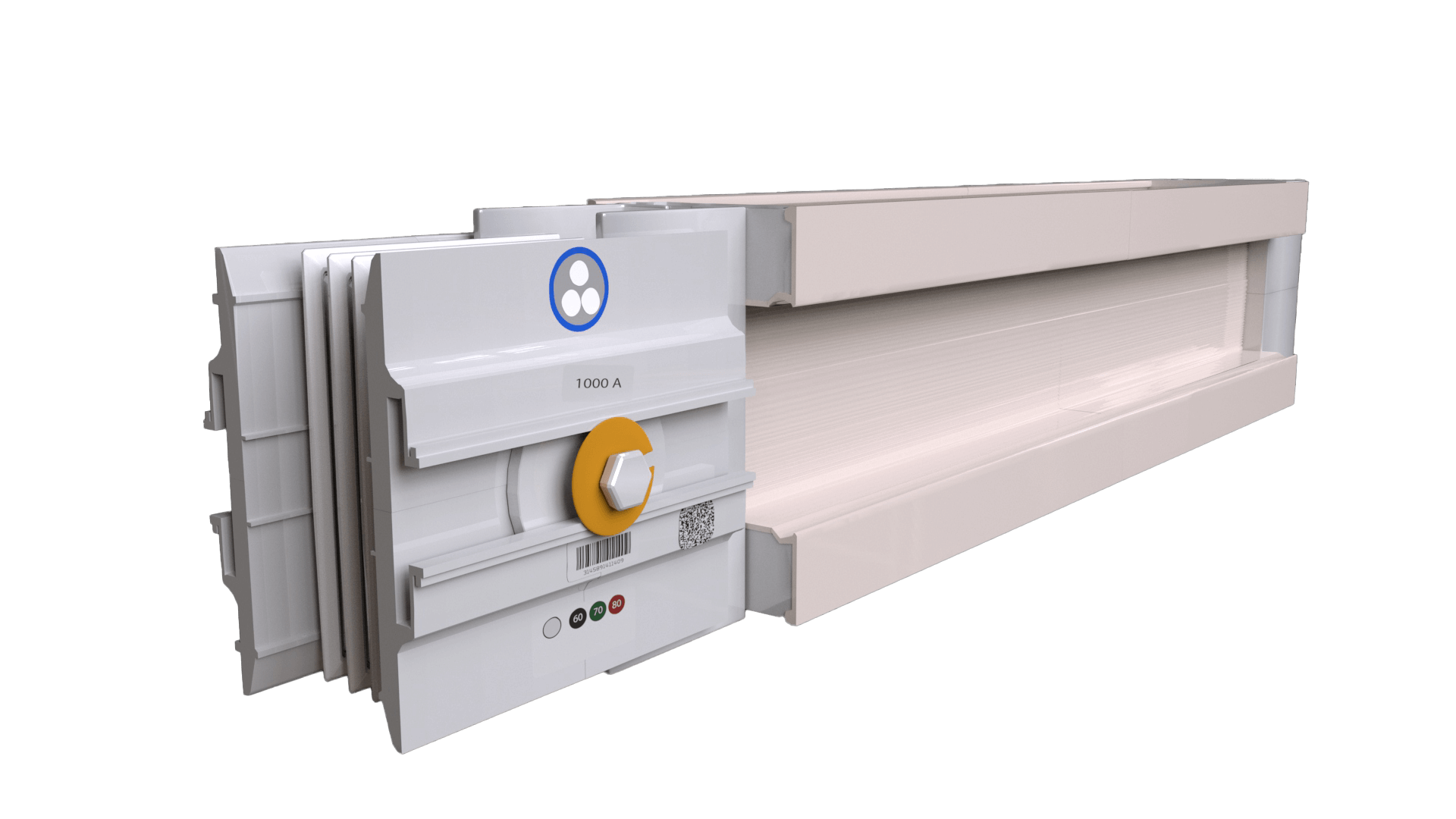

Thanh Cái Dẫn Điện Busway

With Tai Sin Busbar Trunking System, you can always find the optimal solution to meet the challenges ahead.

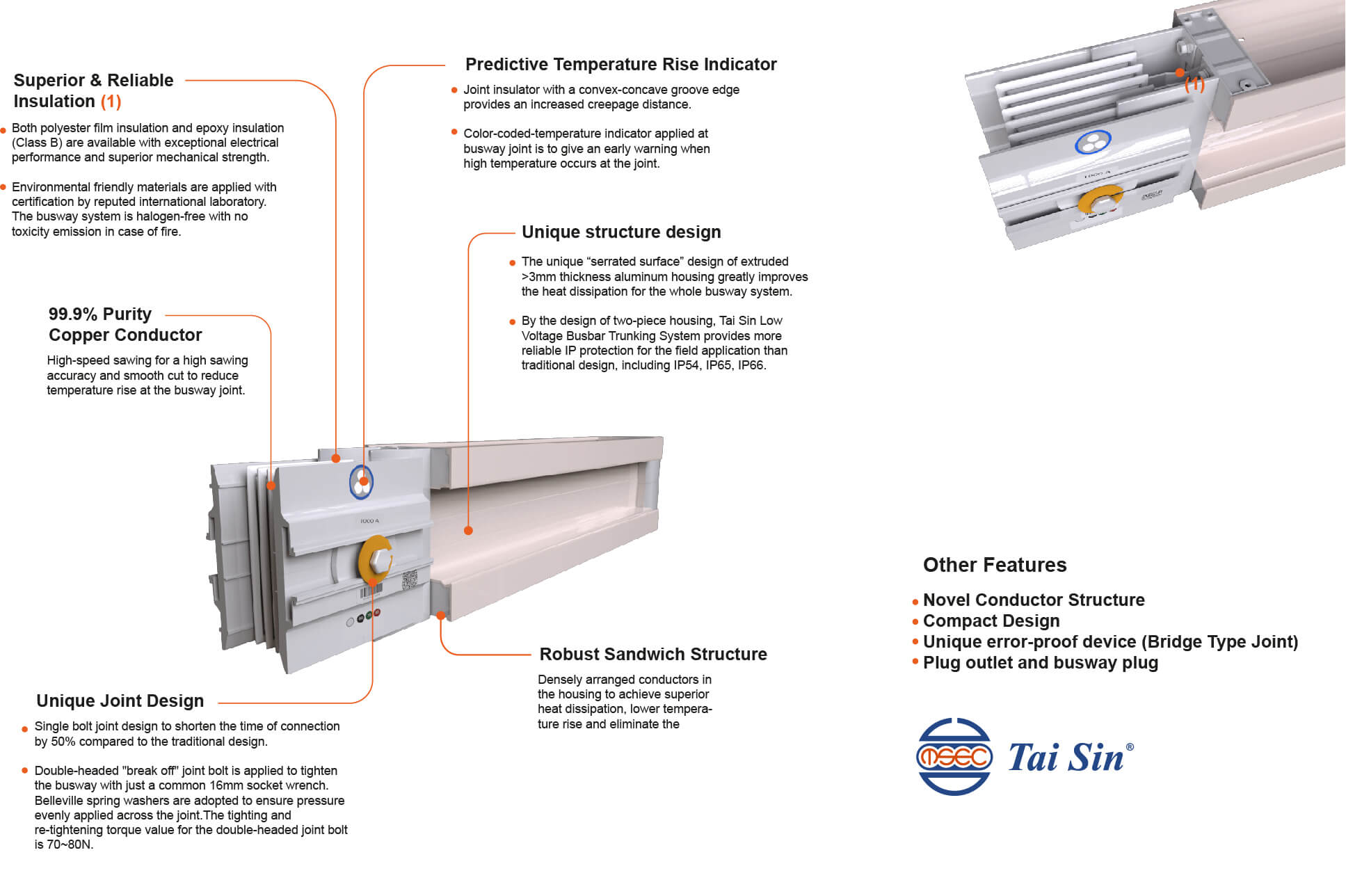

Tai Sin Busway Feature
1. Busway Feature Unique Structure Design

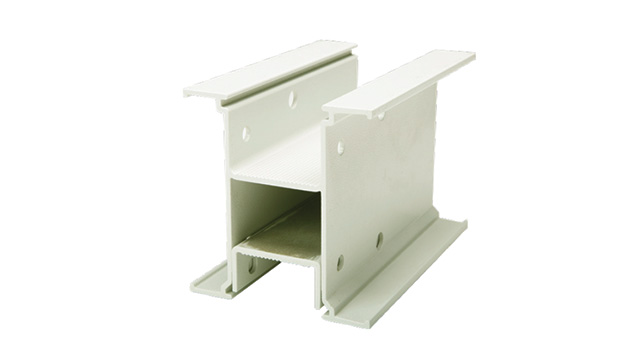

Unique Structure Design

Unique “serrated surface” design of extruded aluminum housing greatly improves the heat dissipation for the whole busway system.

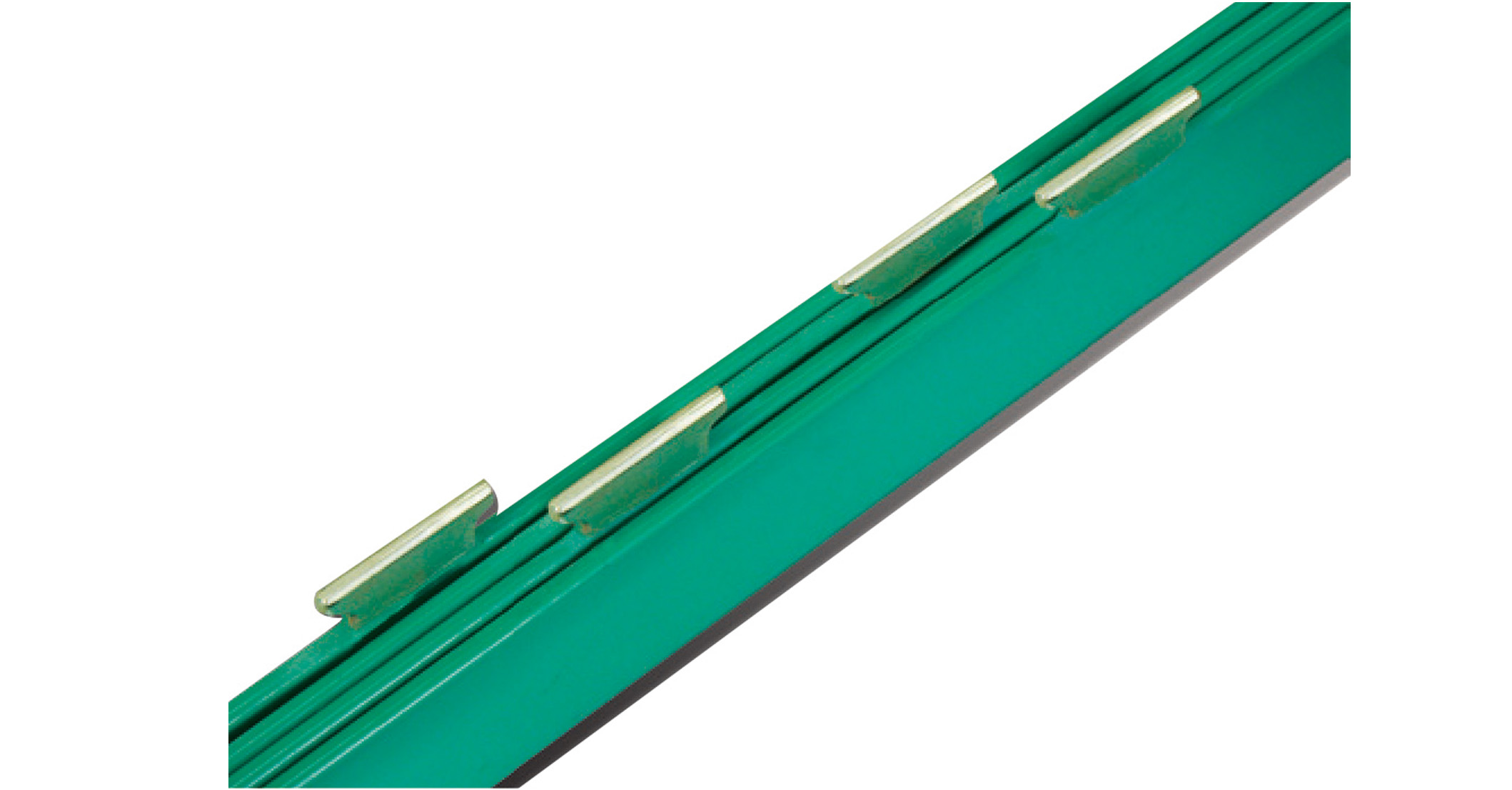

2. Novel-Conductor-Structure-copy

Novel Conductor Structure

State-of-the-art welding processes with compact arrangement to create a true sandwich structure.

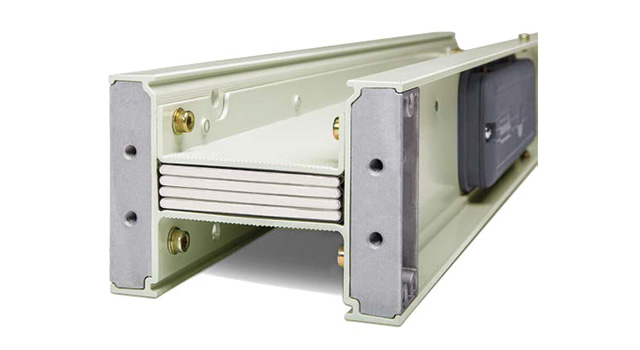

3. Busway System Robust Sandwich Structure

Robust Sandwich Structure

Densely arranged conductors in the housing to achieve superior heat dissipation, lower temperature rise and eliminate the “chimney effect”.

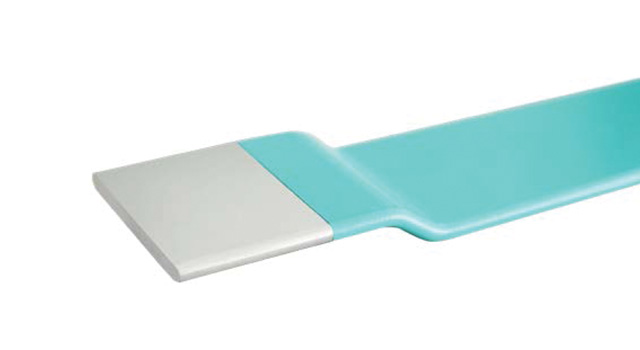

4. Busway System Superior & Reliable Insulation

Superior & Reliable Insulation

Both polyester film insulation and epoxy insulation (Class B) are available with exceptional electrical performance and superior mechanical strength. Environmental friendly materials are applied with certification by reputed international laboratory. The busway system is halogen-free with no toxicity emission in case of fire.

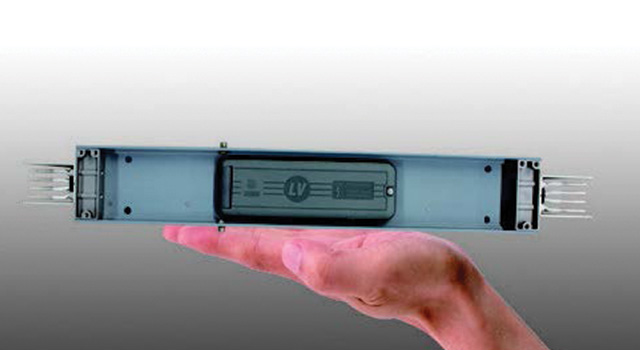

5. Busway System Compact Design

Compact Design

The dimension of LV busway begins at 125mmx103mm for 400-630A ratings with very compact design. Bus plug is also compressive and dimension begins at 360mm×250mm×255 mm for 100A, giving more space for other equipments.

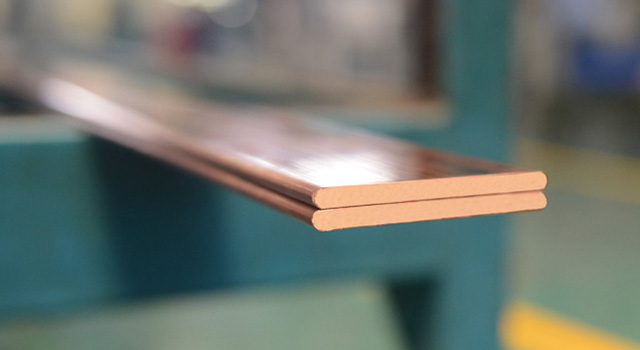

99.9% Purity Copper Conductor

High-speed sawing for a high sawing accuracy and smooth cut to reduce temperature rise at the busway joint.

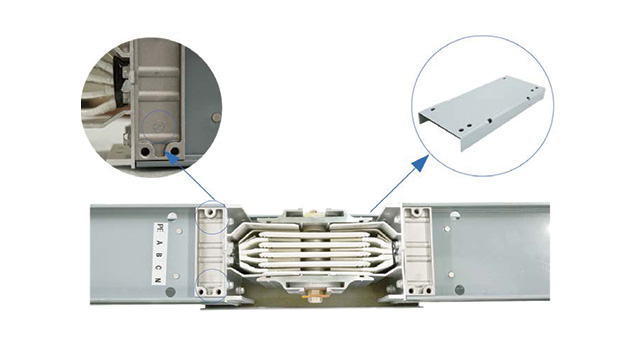

Unique Error-proof Device

A bridge type joint is devised to prevent potential damage on busbar due to incorrect connection.

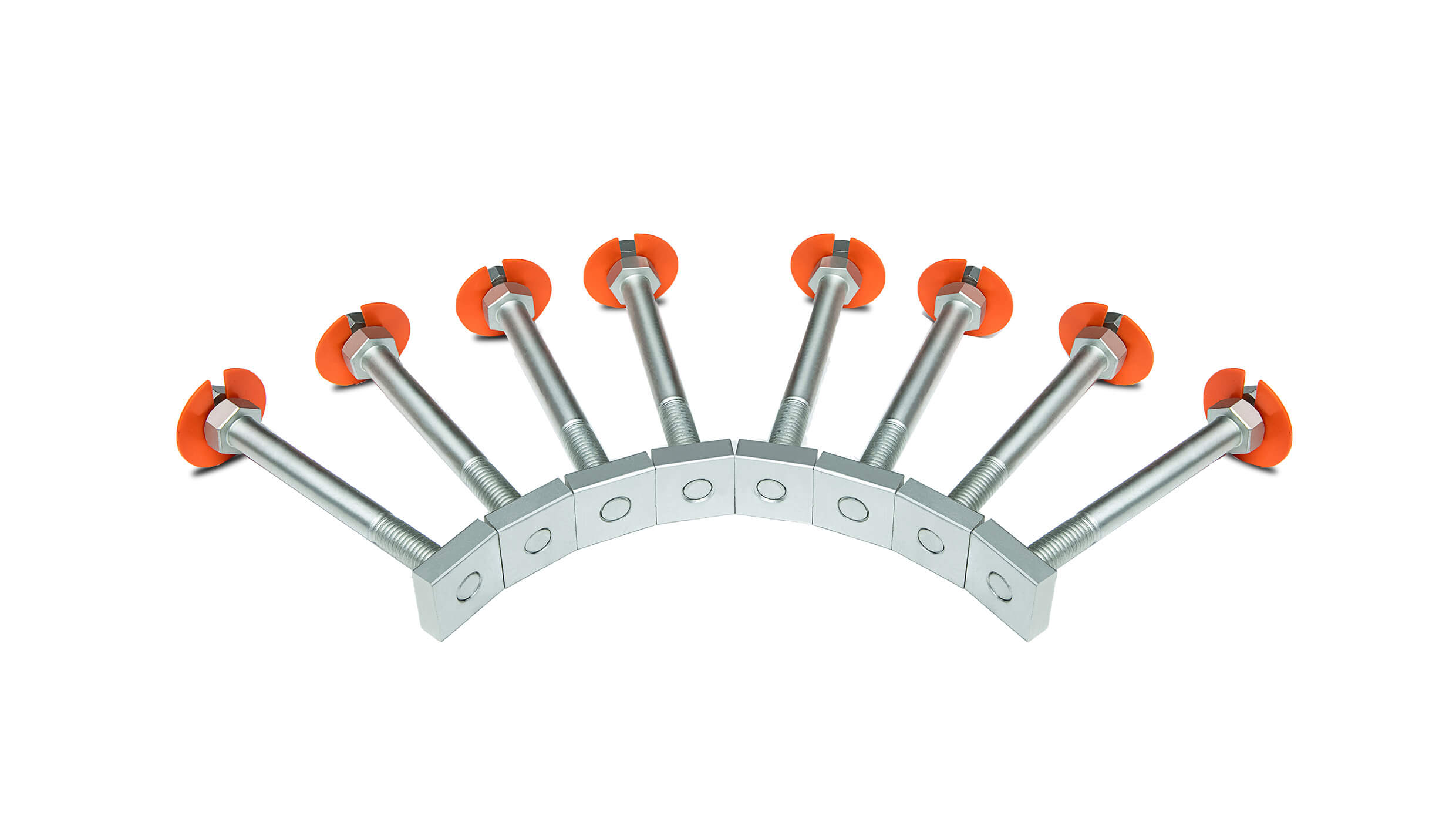

Unique Joint Design

Single bolt joint design to shorten the time of connection by 50% compared to the traditional design.
Double headed “break off” joint bolt to tighten the busway with just a common 16mm socket wrench. Belleville spring washers are adopted to ensure pressure evenly applied across the joint.

9. Busway Feature Predictive Temperature Rise Indicator

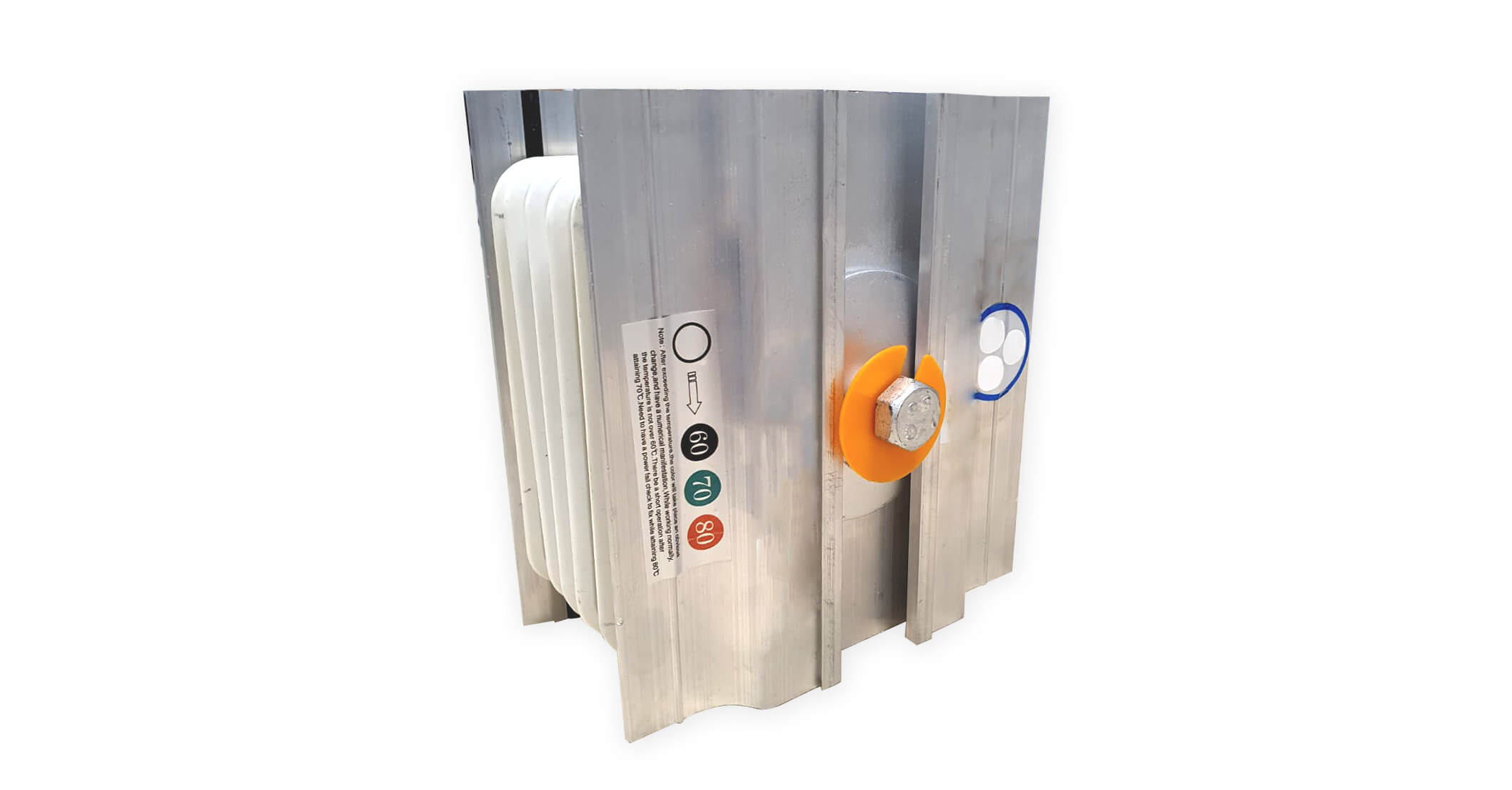

Predictive Temperature Rise Indicator

  • Joint insulator with a convex-concave groove edge provides an increased creepage distance.
  • Color-coded-temperature indicator applied at busway joint is to give an early warning when high temperature occurs at the joint.
10. Busway Feature Safe Plug outlet and Busbar plug

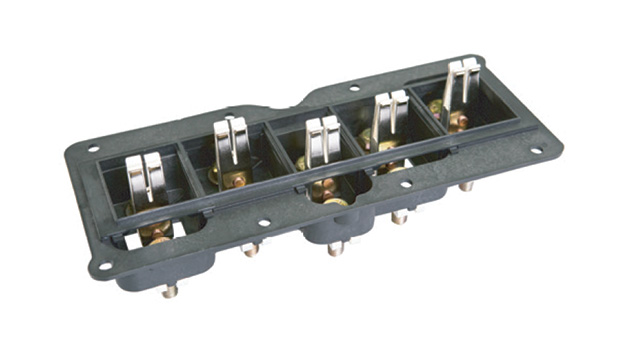

Safe Plug outlet and Busbar plug

  • Both outlet phase tabe and plug stab fingers are fully silver-plated
  • The bus plug has complete safty interlock mechanism to ensure electric safty
  • The plug outlet protection module is embedded with waterproof silicone rubber, up to IP54
  • Up to 10 plug outlets can be installed every 3 m of straight length busway

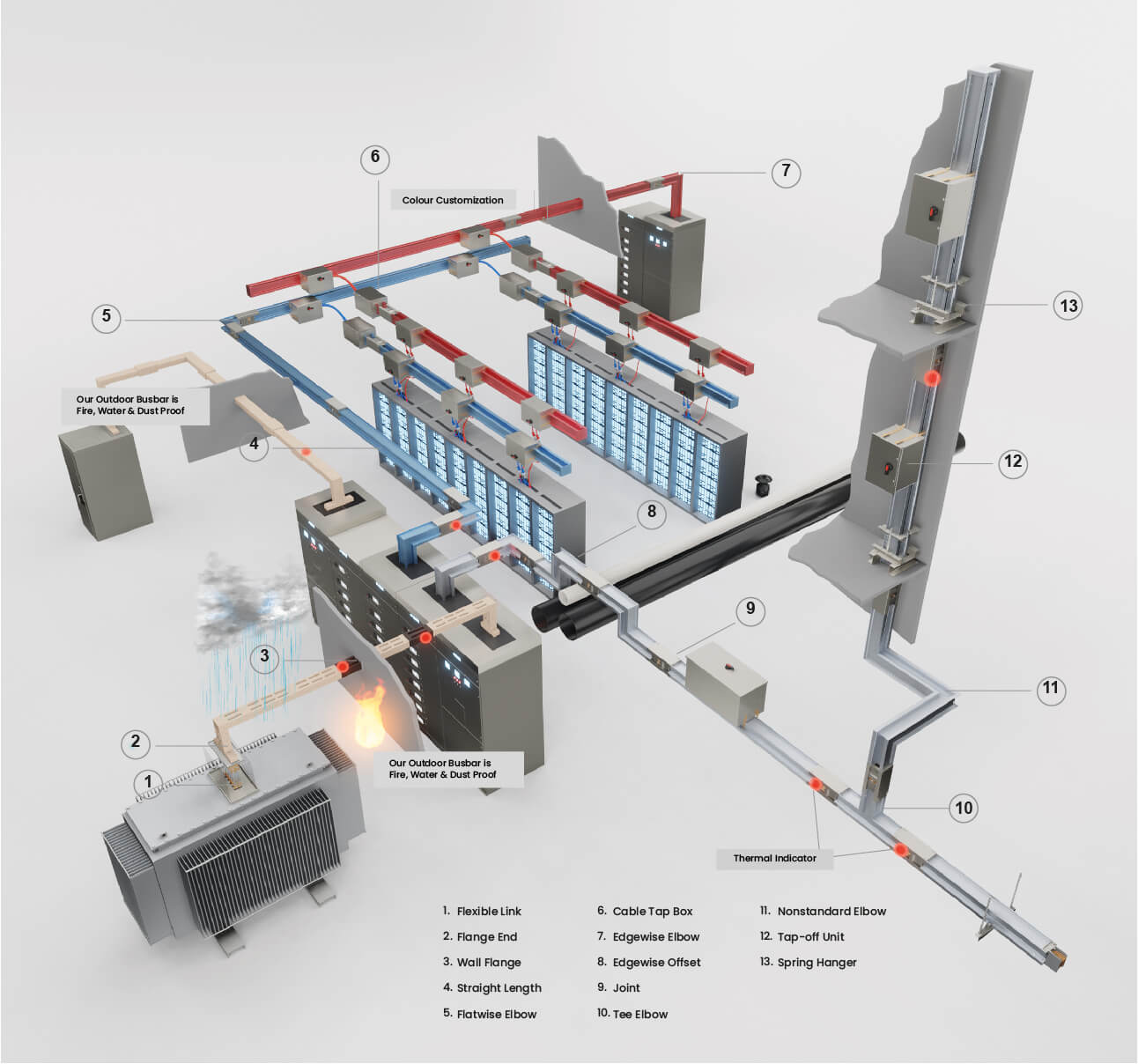

Busbar Trunking System Overview

Manufacturer of Power Distribution System since 1980s

  • The only brand that conducts factory routine test in Singapore
  • Provide local technical and replacement/repair support with the shortest lead time
  • Type tested and certified to IEC 61439-6 standard
  • Quality assured with 3rd party (KEMA) surveillance
View Catalogue

Our product and system adapted to your requirements

Audit – Reduce risk And Improve Reliability

Our engineers help assess your sites, identify safety and efficient issues of your critical installations. We will help reduce risk and improve reliability for your electrical distribution needs and optimize your energy usage while pointing the way to your digital journey.

Maintenance – Ensure Equipment Peak Performance

Helping you keep mission-critical infrastructure operating at maximum efficiency and optimal performance is our main goal. Our support services provide flexibility for all aspects of your electrical distribution needs.

Training – Get Tailored Training Solutions

Our technical training solutions are capable of enhancing the technical competencies of your team in electrical safety and distribution.

Spare parts - Get the Right Parts At The Right Time

Don’t run the risk of extended electrical downtime and take advantage of our local assembly facility for all your spare part needs.


Engineering excellence: Drawing is ready for production in maximum 07 working days once requirements are fully provided.

Our Certifications

  • Product and production location will be under surveillance of KEMA
  • Ensure product produced identical to those originally tested
  • Complete IEC61439-6 type tests
  • The certification mark can be applied to the label as per specified duration of the certification
  • Certification Validity will be Published on KEMA website
  • Resistance to Flame Propagation
  • Fire resistance in building penetration
  • Resistance of insulating materials to abnormal heat & fire
Busbar trunking system certification
