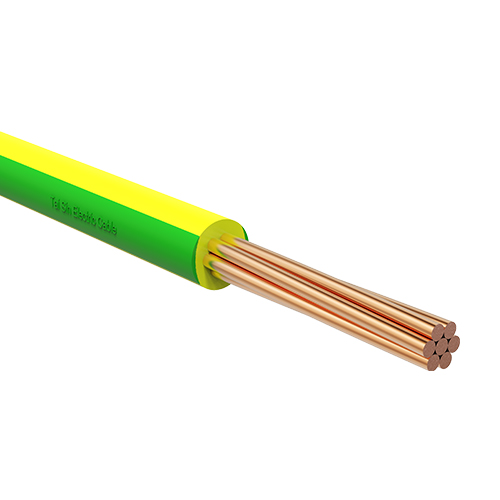

FRT-H, CU / LSZH, Single core

FRT-H, CU / LSZH, Single core, Cross-linked Polyolefin LSZH insulated, Non-sheathed, 450/750V (600/1000V*) cable - compliant with BS EN50525-3-41, H07Z-R


Conductor: Plain annealed copper, Class 2, Stranded circular or compacted
Insulation: Cross-linked Polyolefin (LSZH) Low Smoke Zero Halogen Compound
Insulation colour: Black, Green/Yellow, Blue, White, Brown, Grey or Others

Electrical Characteristics

Operating voltage, U0/U: 450/750V (600/1000V*)
Operating temperature: -15°C to +90°C
Final short circuit temperature: 250°C
Test Voltage: 3.5kV for 5 minutes

Reference Standards

Design specification: BS EN50525-3-41, H07Z-R
Conductor: IEC60228, BS EN60228
Flame retardancy: IEC60332-3-22, BS EN60332-3-22
Low-Smoke Zero-Halogen: IEC61034-2, BS EN61034-2, IEC60754-1, IEC60754-2, BS EN60754-1, BS EN60754-2

Installation Reference

Minimum bending radius (mm): 6 x cable overall diameter
Maximum pulling tension: 50N/mm²
