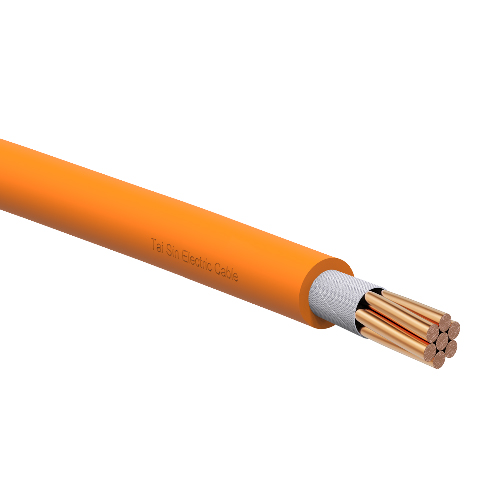

FR-H 110, CU / MGT / LSZH, Single core, Mica taped, Cross-linked Polyolefin LSZH insulated, Non-sheathed, 450/750V (600/1000V*) cable - compliant with BS8592
Construction
Conductor: Plain annealed copper, Class 2 Stranded circular or compacted
Fire barrier: Mica tape (MGT)
Insulation: Cross-link Polyolefin (LSZH) Low-Smoke Zero-Halogen compound
Insulation colour: Orange or Others
Electrical Characteristics
Operating voltage, U0/U: 450/750V (600/1000V*)
Operating temperature: -15°C to +90°C
Final short circuit temperature: 250°C
Test Voltage: 3.5kV for 5 minutes
Reference Standards
Design specification: BS8592
Conductor: IEC60228, BS EN60228
Fire resistance: BS6387 (C,W,Z), SS299 (C), IEC60331
Flame retardancy: IEC60332-3-22, BS EN60332-3-22
Low-Smoke Zero-Halogen: IEC61034-2, BS EN61034-2, IEC60754-1, IEC60754-2, BS EN60754-1, BS EN60754-2
Installation Reference
Minimum bending radius (mm): 8 x cable overall diameter
Maximum pulling tension: 50N/mm²
